High Speed ​​Data connectors: Big Data solutions

Application: High Speed ​​Data / Big Data / Miniaturized multipole HF solutions

High Speed ​​Twisted Pair (HTP), High Speed ​​Data (HSD) and miniaturized multipole solutions - Mini Coax Automotive (MCA)
Vehicles are not driven by fuel or electricity, but by data. Data streams between sensors, cameras, antennas, computing units and higher-level networks are the basis for the mobility of the future, for ADAS as well as for autonomous driving. With our connector systems, we get these data streams flowing: with Mini Coax Automotive for coaxial and with High Speed Twisted Pair for Ethernet topolo gies. In doing so, we meet high data rates and outstanding signal integrity as well as the demanding requirements of the automotive industry. We connect the world with innovations


Driver assistance systems and autonomous driving require higher real-time data rates to ensure safety in order to continuously calculate routes, recognize and classify objects and determine spatial distances.
Large amounts of data from different cameras, sensors and navigation sources have to be merged. The MCA, HTP series enable high data transmission while saving space and weight compared to the FAKRA and HSD series.
IMS CS connectors meet the high requirements of the automotive industry for new, coaxial connectors for maximum data speeds of up to 20 Gbit/s and a frequency range of up to 15 GHz.

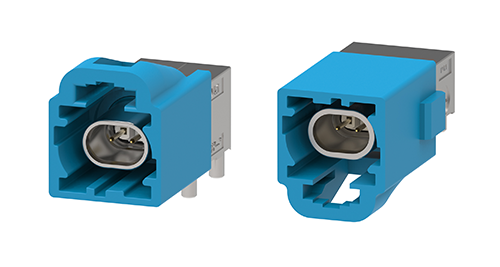

HTP Connector Ethernet High Speed Data
High speed transmission up to 20Gbps

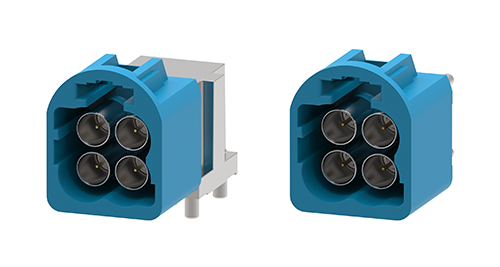

sketch MCA Mini Coax Automotive High Speed Data
Excellent HF properties up to 15 GHz
FAKRA MCA connector automotive High Speed Data
Scalable multi-pin connections
Automotive Applications Multimedia High Speed Data
Hybrid HF & LF signal combination possible

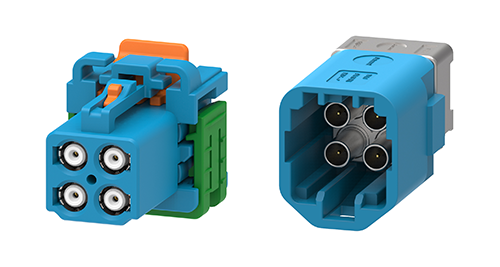

Mini Coax Automotive Multipol Solution High Speed Data
Compact design - 80% less space required
Mini Coax Automotive Multipol Solution High Speed Data
Sophisticated mechanical and color-coded system

Our High-Speed-Data products
