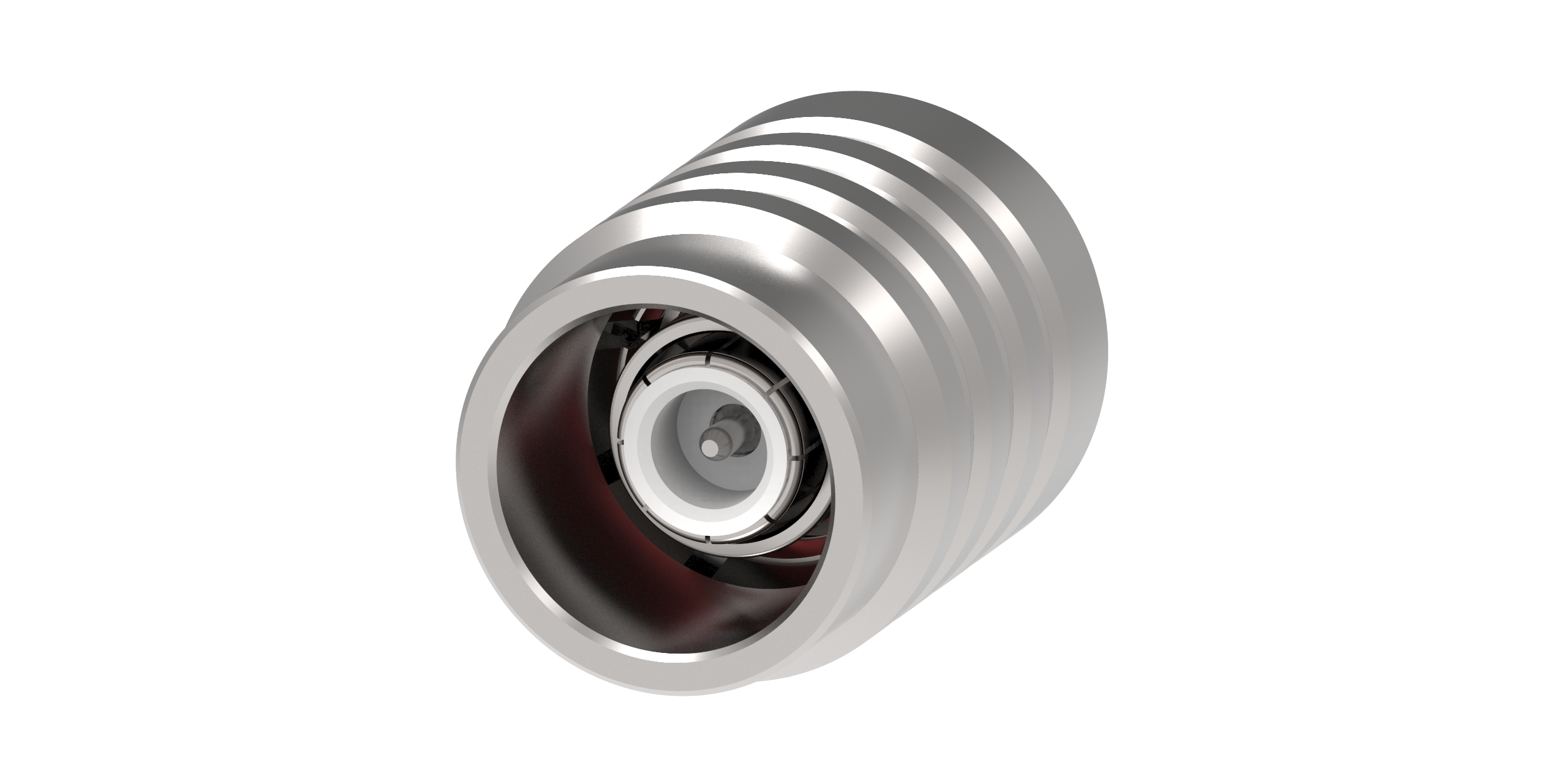

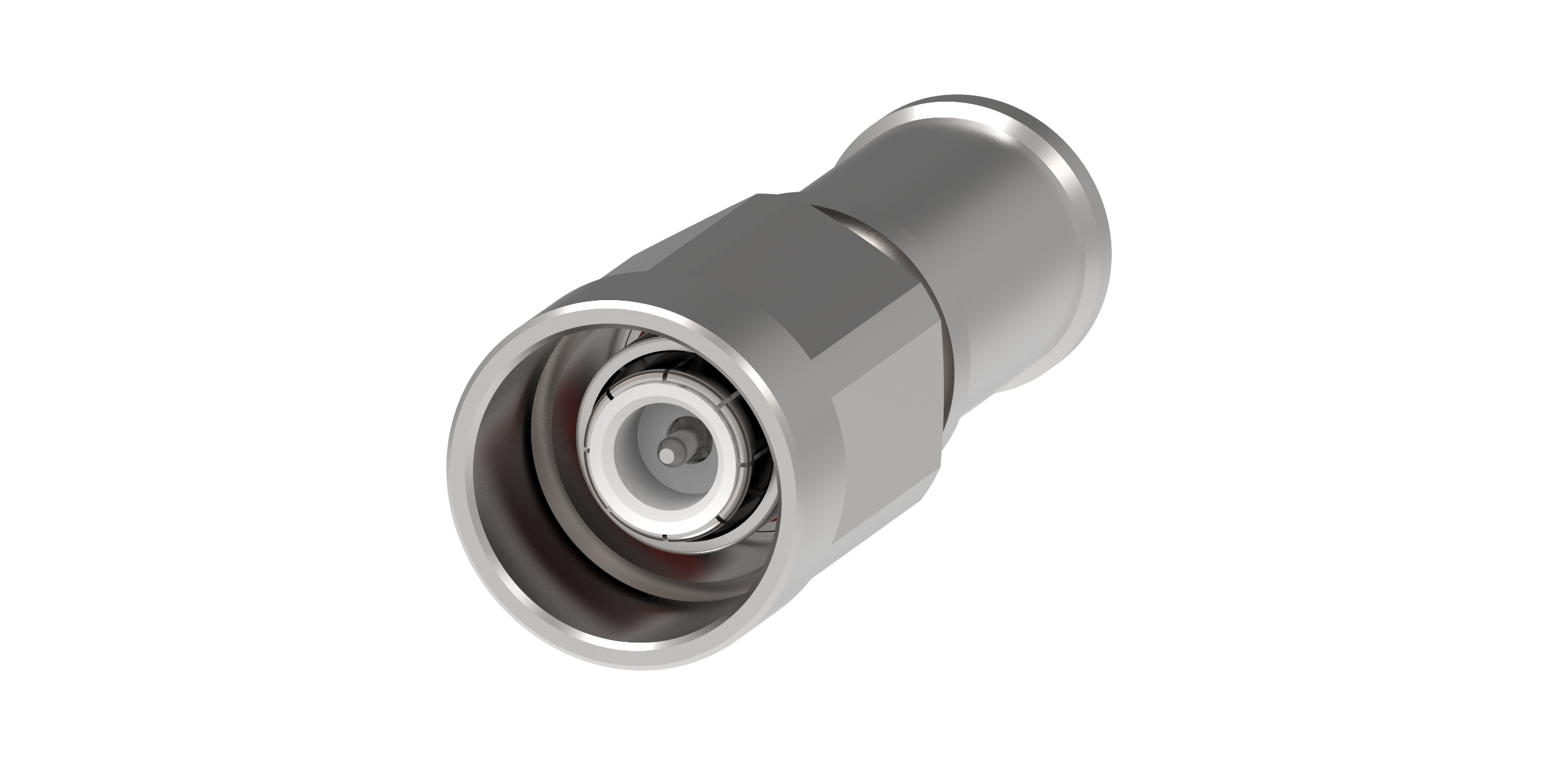

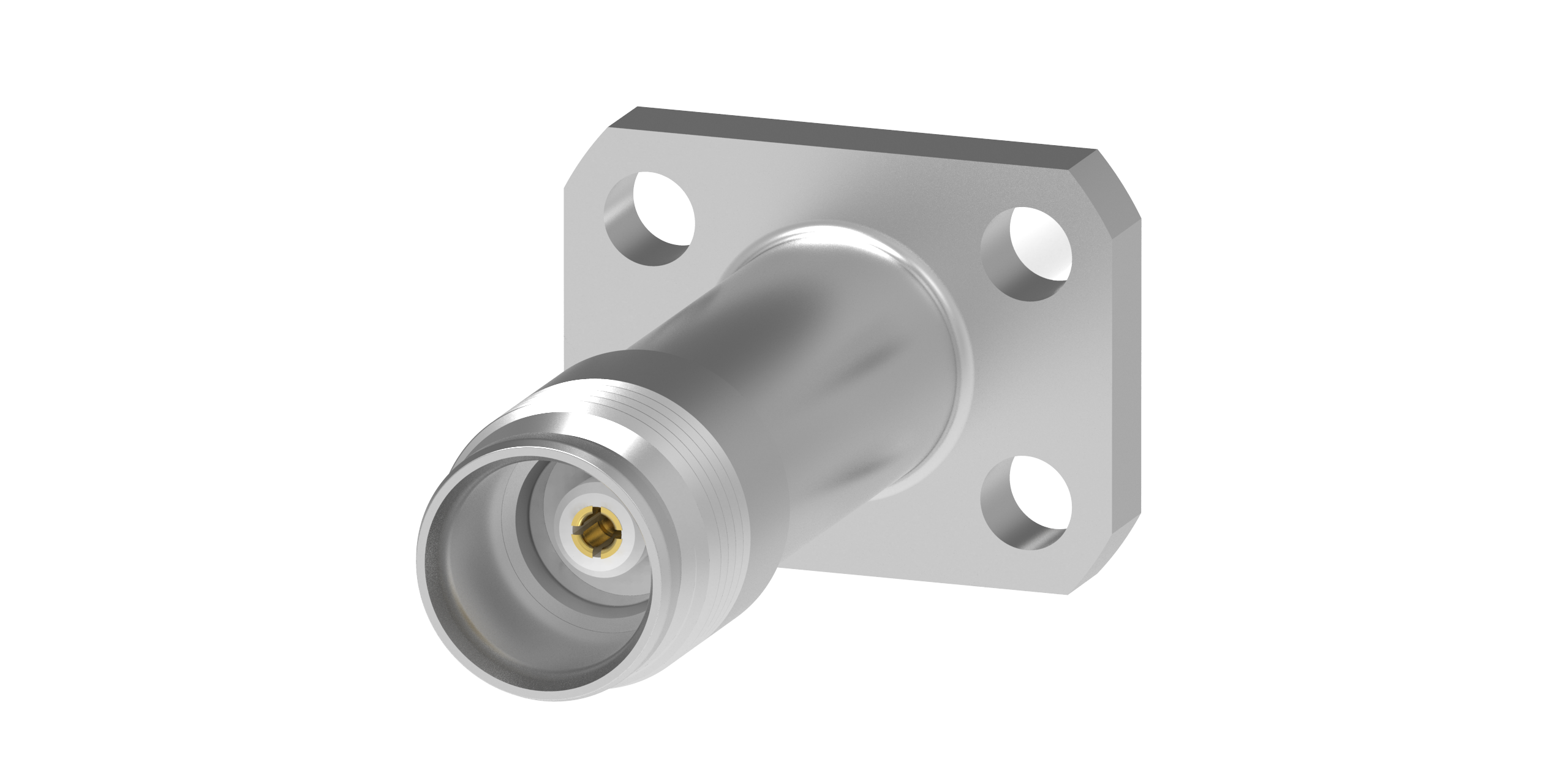

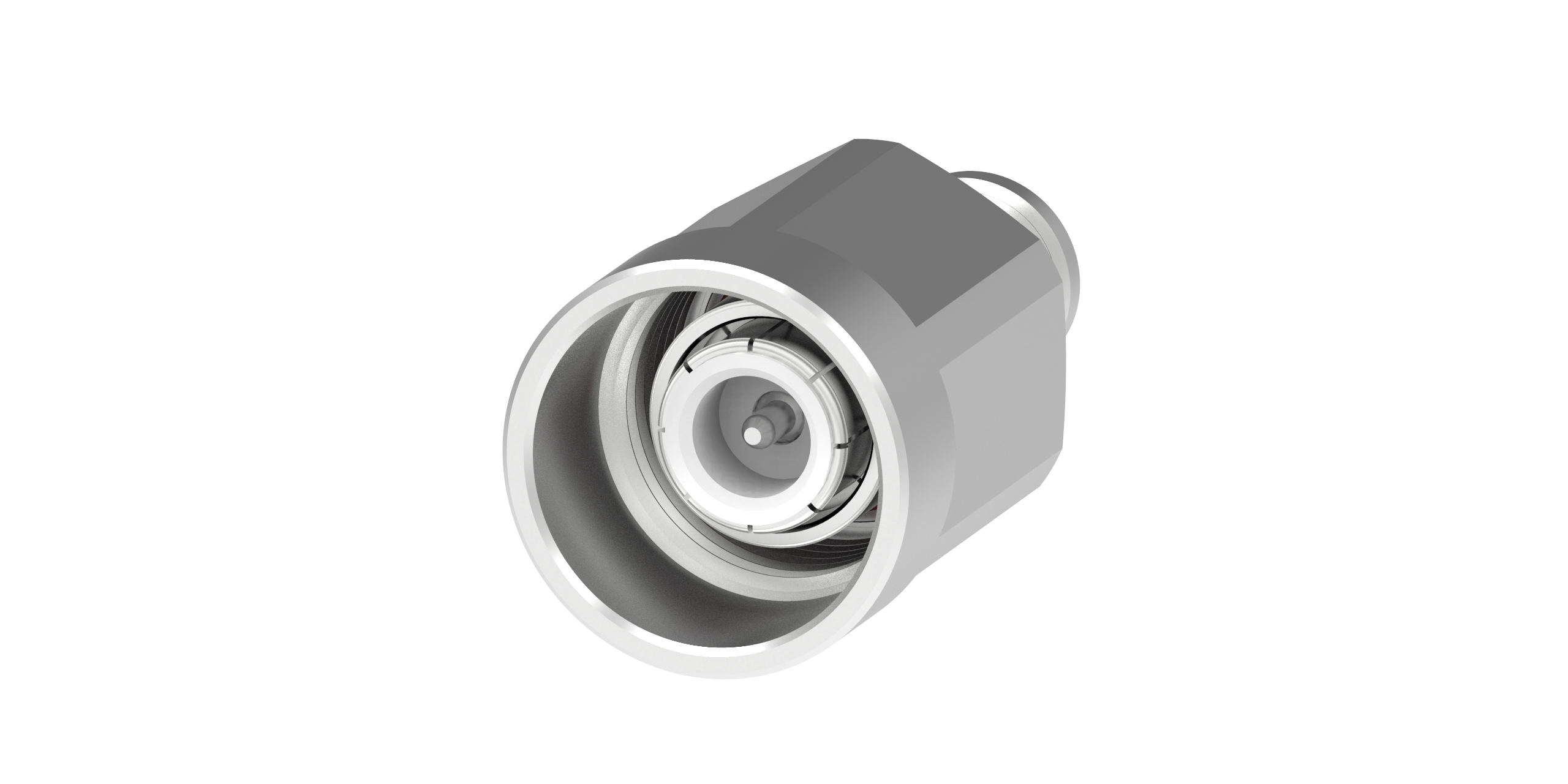

Nex10® - Miniature Low PIM RF Coax Connector System

The NEX10® is a new small coaxial connector system, offering low PIM and ruggedized design in a compact size, to meet the upcoming space reduction requirements of small cells. As the telecommunications industry moves towards the small cell approach, the radio and antenna become smaller and ask for a small sized, high performing coaxial RF connector. The highlights of the new connector system are its excellent PIM stability of -166 dBc, flexibility of coupling mechanism (quick lock and screw) and ruggedized design in a compact size with flange height of 12.7 mm to suit the small cell radio and antenna size requirements.


The Nex10® series has been developed primarily for applications like:

  • Small Cell and MIMO
  • Distributed Antenna Systems (DAS) / In-building antennas
  • Antennas, radios and filter output
  • Applications requiring PIM stability in a compact size
  • Multi coax / Blind mate applications

Product features

  • Impedance: 50Ω
  • Excellent RF performance up to 20 GHz
  • Superior passive intermodulation values - better than -166dBc
  • Return loss: ≥ 36dB up to 6 GHz
  • Power rating typ. 100W @ 2 GHz @ 85°C
  • IP 68 watertight solution

For more detailed information on Nex10®, you´re welcome as well to visit our
